Pvc-U Pipe Products
PVC-U-Pipeline

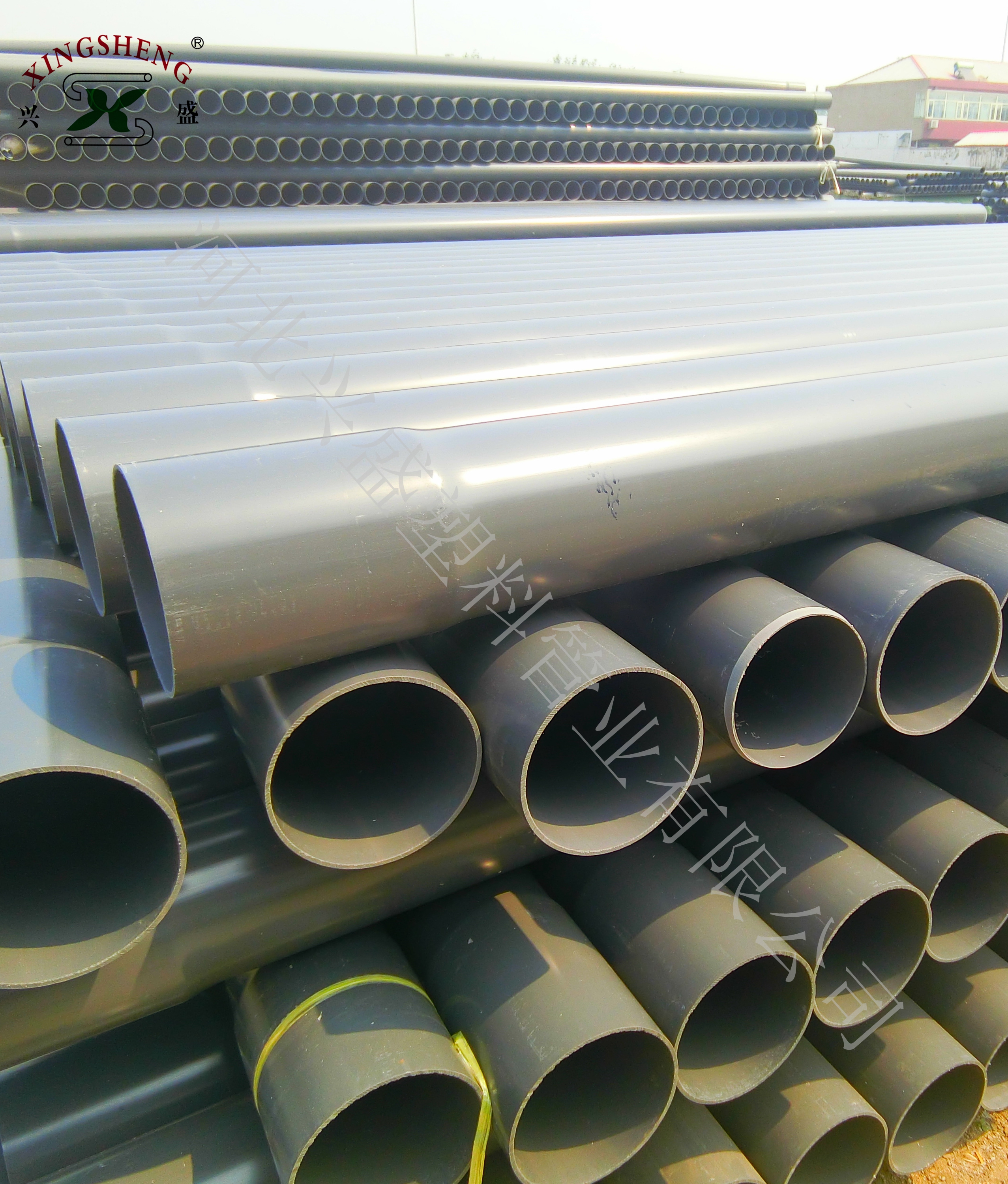

PVC-U low pressure irrigation pipe
Product introduction
I. Performance Characteristics:
1. Light weight: the weight per unit length is only 1/6 of the cast iron pipe
2. High strength: tensile strength up to more than 45Mpa
3. Small resistance: the inner wall of the pipe is smooth without scaling, and the water head loss of the pipe with the same diameter is more than 30% lower than that of the cast iron pipe;
4, corrosion resistance: good acid resistance, alkali resistance, chemical resistance, good resistance to electrical corrosion, no pitting phenomenon in use
5, easy to install: flexible connection, rubber ring seal, easy to install, good sealing
6. Long service life: under normal working conditions, the service life can reach 50 years
7, non-toxic sanitation: meet the hygienic standards for drinking water, water transport is not contaminated by secondary
8. Low cost: high quality and low price, low cost of transportation and installation, saving 30% of the total project cost compared with cast iron pipes
Ii. Scope of Use:
Drinking water and general water for humans and animals shall not exceed 45 degrees. (Example: urban water supply projects, internal and external water supply for buildings, industrial and mining enterprises,Water supply, underground fire engineering, water supply for aquaculture, etc.)

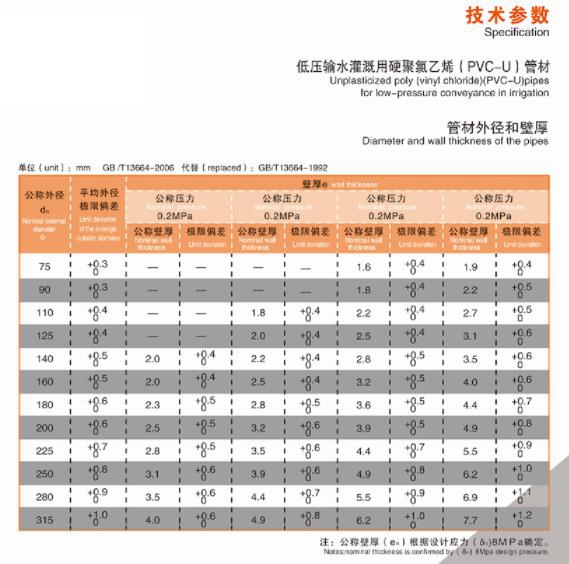

Iii. Technical Requirements:
1, color: gray, white, blue, other colors can be customized.
2. Length: 12 meters, 9 meters, 6 meters, other lengths can be customized.
3. Connection mode: elastic sealing ring type, solvent bonding type;
